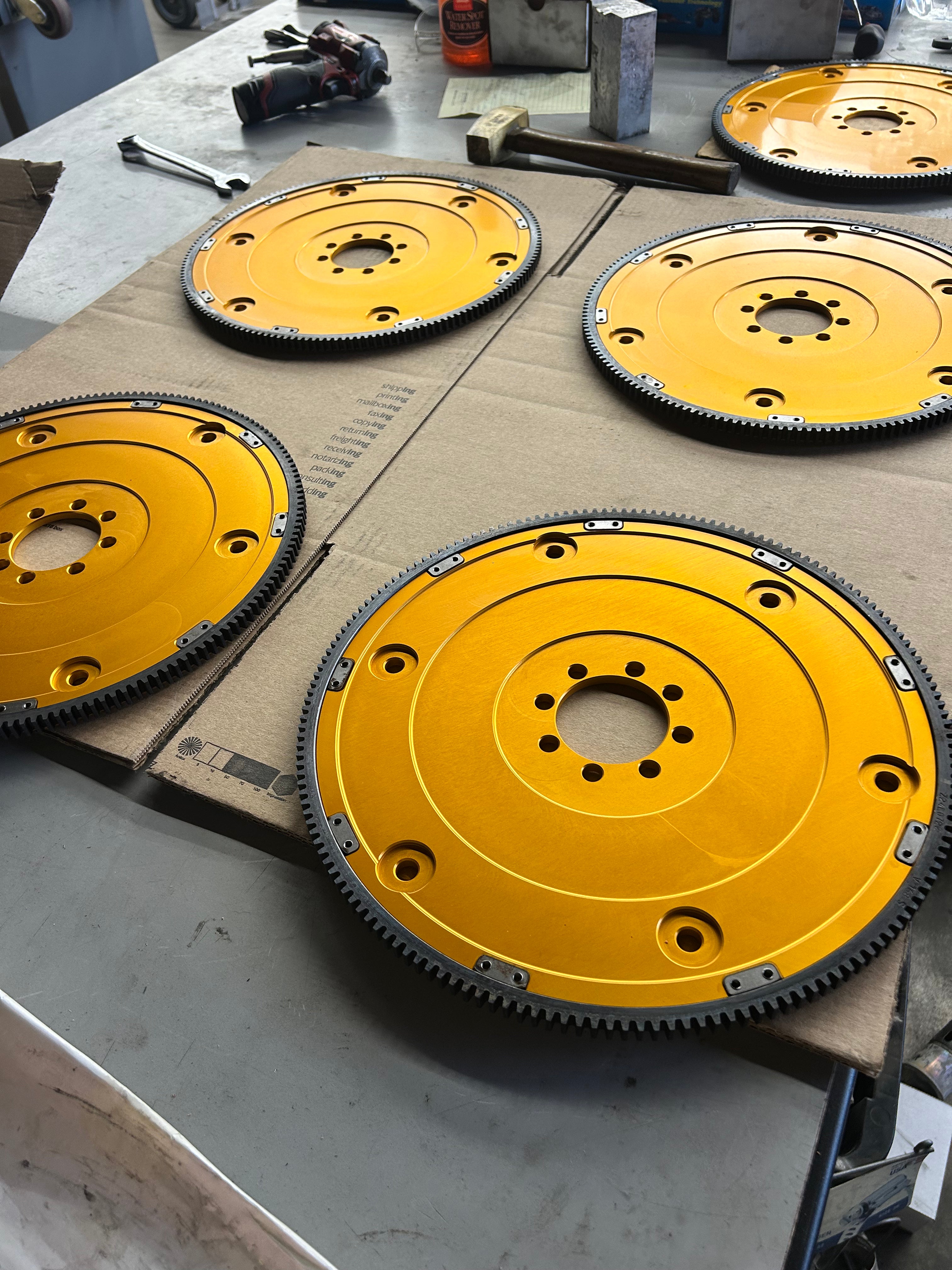

Installing Your Reactor Flexplate

  • INSTRUCTIONS

    You Must Read and Follow Instructions Closely
    When Installing the Reactor Aluminum Flexplate, you may find that the flexplate fits snugly over your crankshaft due to tight tolerances. Be sure to do the following ...


  • Step 1

    Using a rubber mallet or block of wood to tap the flexplate evenly, flush upwards alongside the crankshaft flange.

  • Step 2

    Do not draw Flexplate up against crankshaft with bolts or an impact wrench

  • Step 3

    Use Loc-Tite and torque flexplate bolts no more than 75 lb/ft following the torque pattern shown below, using Flat Washers Only! If using the Reactor Inertia Ring, be sure to use Loc-Tite and torque no more then maximum 38 lb/ft.
    Loc-Tite 272 suggested

TORQUE PATTERN:

Warning Failure to follow these instructions completely could result in damage to the flexplate and may negatively impact future re-certification efforts
